How to Use
the Zamar Z-ONE
Everything you need to use your Zamar Z-ONE safely and effectively. Watch the tutorial videos and follow the step-by-step guide below.
The official Zamar tutorial videos are hosted on the Zamar Medical support page. Click any video card to open the tutorial directly. For the full video library, visit zamarmedical.com/support and select Z-One.
Setting Up Your Device
Unboxing, powering on, and initial setup of your ORS recovery unit.
Fitting the Anatomic Wraps
How to correctly attach and position the wrap for different body areas.
Programming Your Treatment
Setting temperature, compression level and duration on the touchscreen interface.
Power On the Device
Place the device on a stable, level surface. Connect the power cable and press the power button. The touchscreen will illuminate and the system will run a brief self-check before reaching operating temperature.
Select & Connect Your Wrap
Choose the anatomic wrap matching the body part being treated (knee, ankle, shoulder, etc.). Connect the wrap hose to the device port — you will hear a click when it locks securely in place.
Set Temperature & Compression
On the touchscreen, set your target temperature (5–15°C) and select a compression level: Level 1 (50 mmHg), Level 2 (75 mmHg), or Level 3 (110 mmHg). Set your treatment duration.
Apply the Wrap to the Patient
Apply the wrap snugly to intact, undamaged skin. Ensure full anatomic contact. The wrap should feel firm but comfortable — not tight enough to restrict circulation.
Start Treatment
Press Start on the touchscreen. The device will circulate cooled fluid and activate compression cycles automatically. Monitor the patient, especially during the first session, for any skin reactions.
End Session & Store
When the timer completes, the device will stop automatically. Remove the wrap, disconnect the hose, and power off. No draining or cleaning is required — the system is fully sealed.
⚠ Important Safety Guidelines
- Do not use on damaged or broken skin
- Do not use if you have deep vein thrombosis risk factors
- Do not use if you have significant vascular impairment
- Do not use if you have diabetes-related circulatory issues
- Stop immediately if burning, itching, or blistering occurs
- Always consult your surgeon or physiotherapist before starting
- Do not use on areas with acute unstable fractures
- Do not apply directly over open wounds without dressing
Have Questions About Your Treatment?
Our team is here to help you get the most from your recovery.
Anatomic Wrap
Range
The Zamar Z-ONE comes with a purpose-built anatomic wrap for each body area. When you make your enquiry, let us know the area you need and we'll supply the correct wrap with your device.

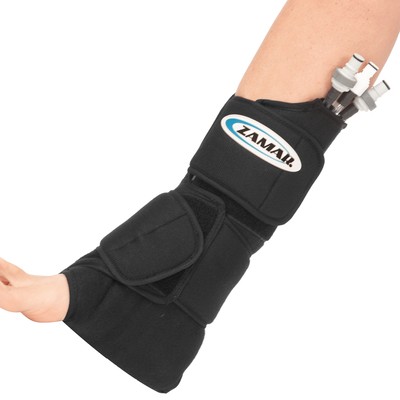

Designed for post-operative ankle and foot recovery. Contoured fit for maximum coverage.
Ankle & Foot

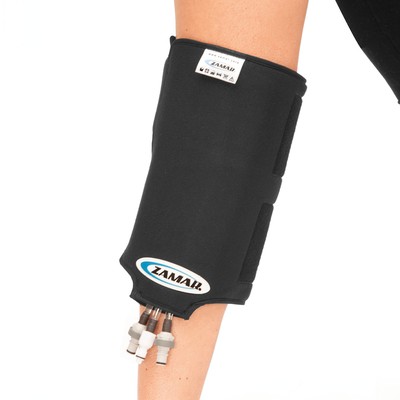

Suitable for knee replacements, ACL and PCL reconstruction, and calf injuries.
Knee & Calf

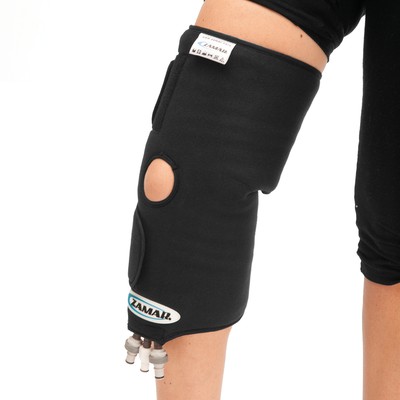

Anatomically shaped for precise fit around the knee joint. Ideal for complex knee surgeries.
Knee

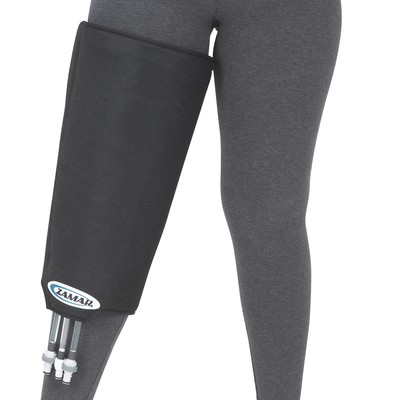

Extended coverage from knee to thigh. Ideal for procedures requiring both areas to be treated.
Knee & Thigh

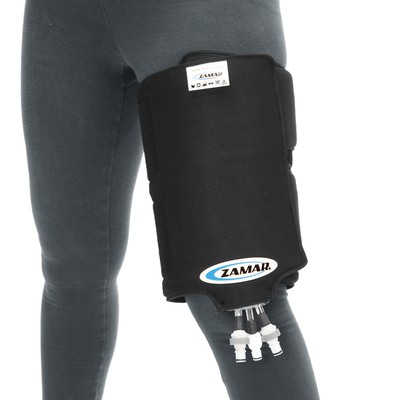

Full thigh coverage for hamstring, quadriceps and femoral post-operative recovery.
Thigh

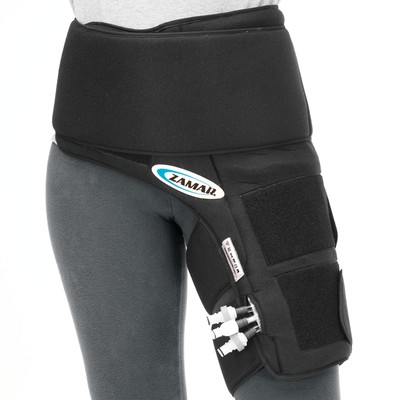

Left and right specific wrap for hip replacement and hip arthroscopy recovery.
Hip

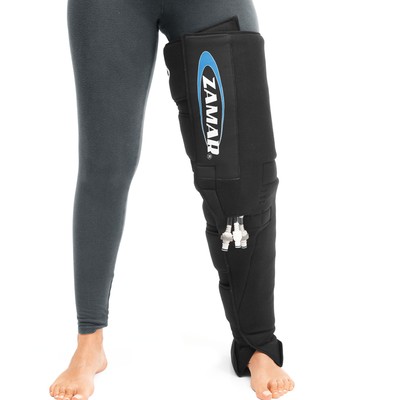

Full leg coverage from hip to ankle. Ideal for extensive lower limb procedures.
Full Leg

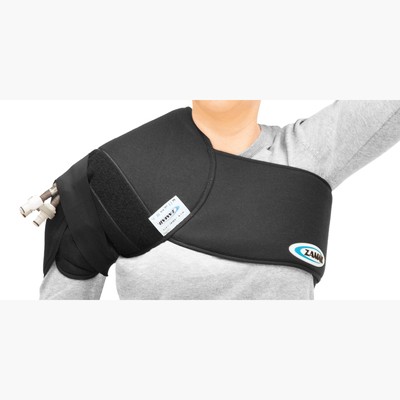

Full shoulder coverage for rotator cuff repairs, labrum surgery and shoulder replacements.
Shoulder

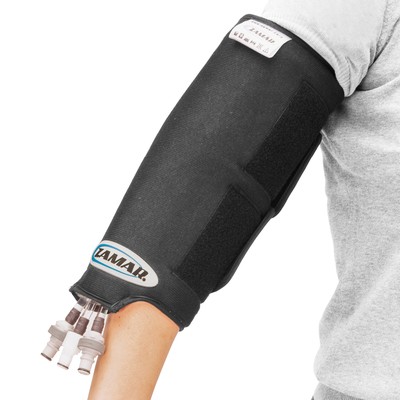

Dual-purpose wrap for elbow and wrist post-operative recovery and acute injury management.
Elbow & Wrist
Wide coverage lumbar wrap for lower back surgery and post-operative spinal recovery.
Lower BackNot sure which wrap you need? Include your surgery type in your enquiry and we'll advise you.
